Gen 3 Hemi to manual transmission bronze pilot bushing

$27.75

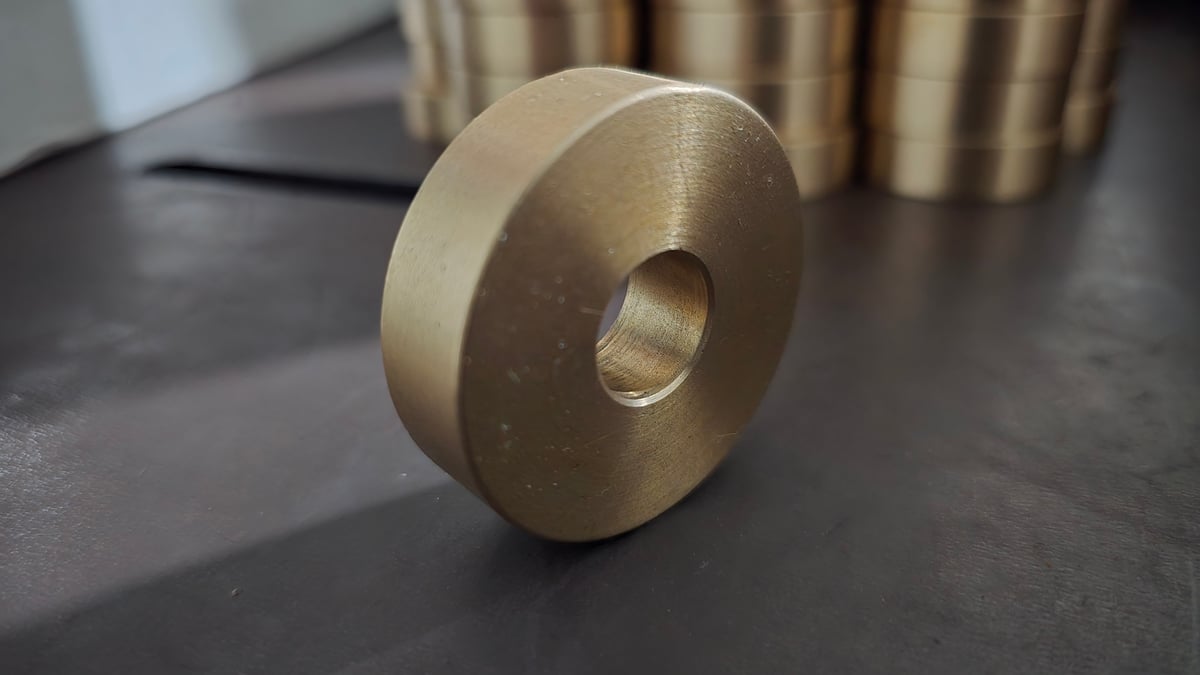

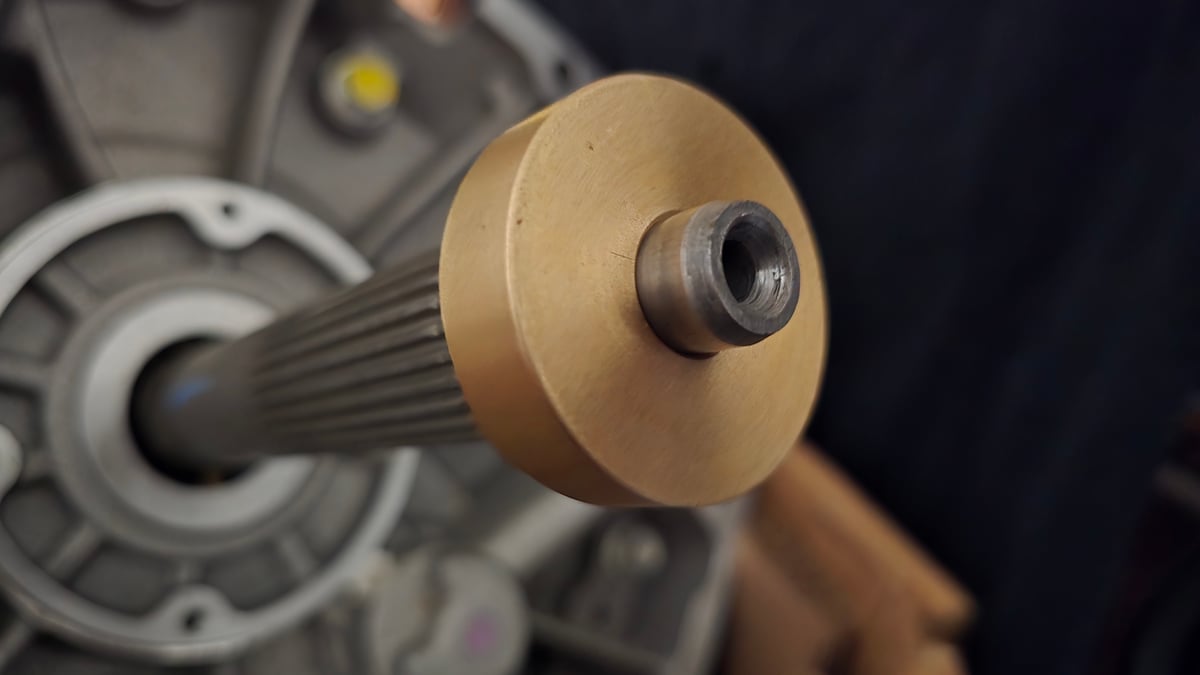

Bronze pilot bushings have no roller bearings to get damaged and are a much simpler design. Measuring 1.8155" OD with a .590" ID, this bushing is a great press fit for Gen 3 Hemi crankshafts with a GM T56 Magnum behind it.

Bronze bushings for Gen 3 Hemi to TKO 500 with 26 spline transmissions 1.8155" OD x 0.670" ID x 0.50" thick for everyone with 5 speeds available as well.

Our custom cut 1.8155" OD with a 0.750" ID × 0.562" thick bronze bushing which should fit a Gen 3 Hemi crank to a A833 four speed transmission.

When frozen, these bushings shrink to 1.8145" OD making for an easier install on the chamfered side.
